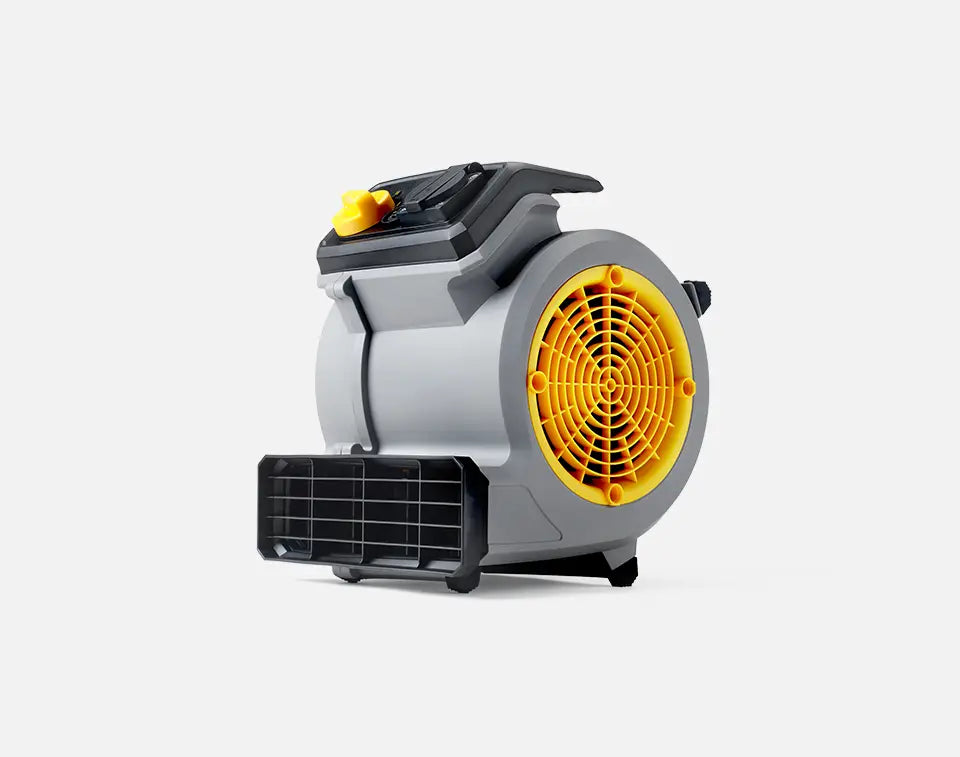

Vacmaster Air Mover
Guides, Manuals, Parts & Support
AM1202-03
Learn how to set up and use your Air Mover with instruction manuals, user guides and FAQs.
-
01 Setting Up
Unpack the Vacmaster air mover and plug it in to an electrical outlet.
-
02 Maintenance
Maintenance Before and After Each Use
1) Inspect the plug and the cord to ensure that it has not been damaged during operation or between uses. If the plug or cord is damaged, do not use the air mover and replace the damaged part immediately.
2) Check the air intake and air discharge grills and make sure they are free of blockage.
Cord Storage
1) Before storing the air mover, ensure the power switch is turned to the OFF position, and unplug the unit from the power outlet.
2) Wrap the power cord around the base of the handle.
3) Use the attached cord clip to hold the cord in place.
Storing the Air Mover
1) To conserve space while storing multiple units, this air mover can be stacked together with multiple additional units.
2) To stack, the pegs on the intake grill on the power switch side of the unit must be inserted into the peg receiver on the opposite side of the partner unit. -
03 Technical Specifications
Model Number
AM1202-03Power Supply
Corded 220-240VMotor Power
124WNoise Level
49LpABlower Function
3 AnglesCord Length
3.6mDimensions (Complete Unit)
H 31cm x W 24cm x D 28cmMotor Voltage
240VWeight
3.5kgAir Speed
1300RpmAir Volume
15 mtr³ per min / 518 Cubic Feet per MinVariable Speed
3 SettingsPlug Type
C EU 2 Pin 240VGuarantee
5-Years -
04 Spare Parts
We stock a wide range of spare parts if you'd like to repair your machine, rather than replace it. If you can't find the part you are looking for in the accessories section above, please get in touch with us. For safety, certain parts may not be available individually, but as part of a combined unit.
FAQ
Frequently Asked Questions
-
01 Why does the air mover runs briefly and then shut off?
This can be caused by:
1) The intake grill or air discharge grill is obstructed. Remove the obstruction.
2) The motor is damaged. Replace the air mover. -
02 Why does air mover vibrate excessively?
This can be caused by:
1) The centrifugal fan has dirt build up. Have the air mover inspected by qualified personnel or contact the customer care team.
2) The centrifugal fan is damaged or the motor is bent. Replace the air mover.
