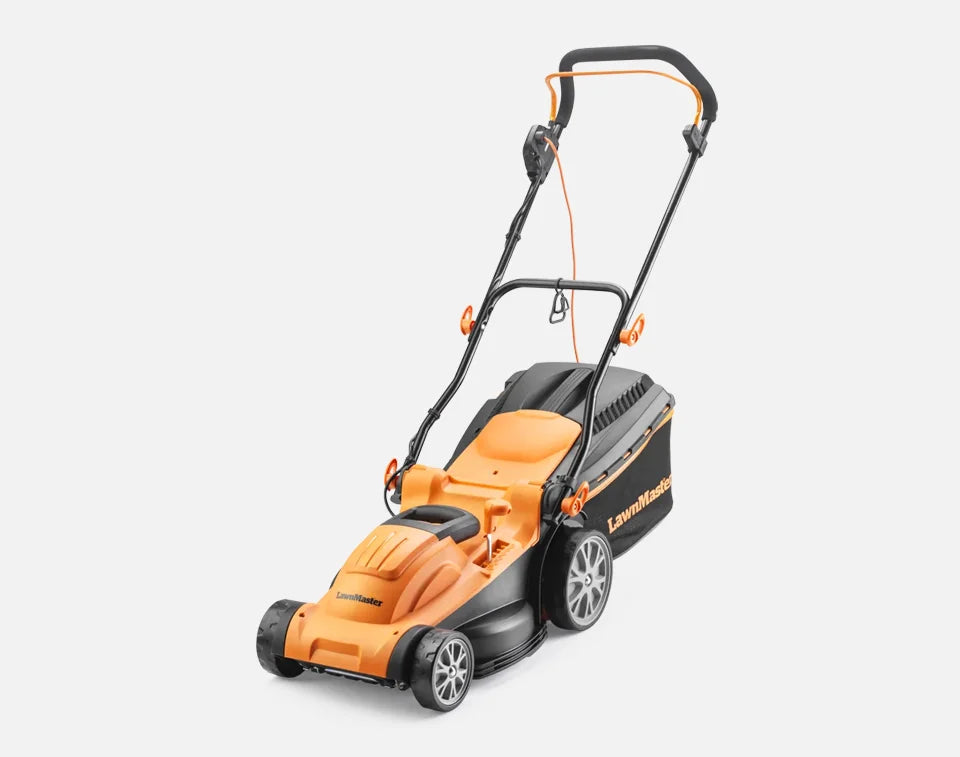

LawnMaster 1600W 37CM Electric Lawn Mower
Guides, Manuals, Parts & Support
M2EB1637M
Learn how to set up and use your electric lawn mower with instruction manuals, user guides and FAQs.
-
01 Setting Up
Assembling the Lower Handle
1. Unfold the lower handle and adjust to the desired operating position.
2. Rotate the wing knobs clockwise to tighten.
NOTE: Pay attention to the power cable before tightening the knobs to avoid getting it entangled or pressed between the lower handle and deck.
Assembling the Upper Handle
1. Align the upper handle and lower handle and secure with the wing knobs and bolts.
Rotate the wing knobs clockwise to tighten.
2. There are two possible height positions. Choose the one most suitable for you.
Assembling the Grass Collection Bag1. Insert the handle into the slots on the grass collection bag top.
2. Fully insert the rods of the metal frame into the slots on either side of the plastic base of the grass collection bag.
3. Secure the metal support rods into the fixing position on either side of the grass collection base. Ensure the side clamping sleeves are properly fixed onto the metal support frame.
N.B. There is a hole in the bottom of the grass collection bag to hang it up if required. -
02 Maintenance
Your LawnMaster 1600W 37cm Electric lawn mower blade needs to be regularly checked, cleaned and sharpened to preserve the cutting performance of your mower and encourage healthy grass growth. If the blade becomes damaged, we always recommend changing it. It's quick and easy to do.
Follow this step by step video to see how: -
03 Technical Specifications
Model Number
M2EB1637M-03Power Supply
220 - 240V ElectricMotor Power
1600WCable Length
10mCutting Width
37 cmMulching
YesCut Height Settings (mm)
20/30/40/50/60/70Grass Box Capacity
40LWeight
13.95kgRecommended Cutting Area
300m²Drive
PushRecommended Cutting Area
300m²Plug Type
C EU 2 Pin PlugMX 24V Shared Battery System
NoGuarantee
2-Year -
04 Accessories
Genuine LawnMaster accessories and spare parts for your machine.
-
-
Regular price €24,99
-
-
05 Spare Parts
We stock a wide range of spare parts if you'd like to repair your machine, rather than replace it. If you can't find the part you are looking for in the accessories section above, please get in touch with us. For safety, certain parts may not be available individually, but as part of a combined unit.
-
06 Troubleshooting
Whilst we don't anticipate you having any issues with your lawn mower, here's some troubleshooting guidance if its not performing at its best.
____________________
01. Why has my mower started to vibrate?
This can happen if the steel blade has been damaged.
1. Stop the motor, disconnect the power source, and inspect the blade. If the blade is worn replace it.
2. If the blade is in good condition, check the tightness of the blade screw and re-tighten if necessary.
FAQ
Frequently Asked Questions
-
01 How do I use the mulch plug?
To install the mulching plug on your LawnMaster electric lawn mower:
1. Lift the deflector guard and detach the grass collection bag.
2. Lift and hold the deflector guard up with one hand.
3. With other hand grasp the mulching plug by its upright handle and insert the plug into the rear discharge chute. Ensure that the locking latch snaps into place.
4. Release the deflector guard back into position during operation. -
02 How do I read the grass collection indicator?
The grass collection bag full indicator is a small orange flap located on the side of the grass collection box.
1. If the grass collection box is empty or it is not full with grass, the grass full indicator flap will remain open.
2. When this flap remains closed it means that the grass collection box is full and needs to be emptied.
